ASKO CBB861SSC 86cm Concealed Undermount Rangehood with Hob-to-Hood Connectivity – Stainless Steel
Upgrade your kitchen ventilation with the premium ASKO CBB861SSC 86cm Concealed Undermount Rangehood. Carton Damage and Scratch & Dent, this sophisticated rangehood combines powerful extraction performance with an energy-efficient motor, five ventilation settings, advanced perimeter extraction technology and convenient Hob-to-Hood connectivity.
Finished in sleek stainless steel, the CBB861SSC is designed to integrate discreetly into overhead kitchen cabinetry, providing effective ventilation while maintaining a clean and streamlined kitchen appearance.
Featuring up to 640m³/h extraction performance, adjustable LED bar lighting, dishwasher-safe metallic grease filters, Wi-Fi connectivity through ConnectLife and convenient electronic controls, this premium ASKO rangehood delivers effective extraction and everyday convenience.
Key Features
640m³/h Maximum Extraction Capacity – Powerful airflow helps remove cooking steam, smoke, airborne grease and unwanted odours from the kitchen.
86cm Concealed Undermount Design – Wide built-in construction integrates neatly into overhead cabinetry, creating a discreet appearance suitable for contemporary kitchen designs.
5 Ventilation Settings – Four standard extraction speeds plus a Boost function provide flexible ventilation for everything from gentle simmering to intensive frying and high-temperature cooking.
Boost Extraction Function – Provides additional extraction performance when cooking generates larger amounts of steam, smoke or strong odours.
Energy-Efficient Motor – Powerful 220W motor delivers effective extraction while maintaining efficient electricity consumption.
Perimeter Extraction Technology – Concentrates airflow around the edges of the extraction panel, helping capture cooking vapours while maintaining a streamlined appearance.
Hob-to-Hood Connectivity – Allows compatible ASKO cooktops to communicate with the rangehood and automatically coordinate ventilation during cooking.
ConnectLife Wi-Fi Connectivity – Integrated Wi-Fi provides access to compatible connected features through the ConnectLife platform.
Low Noise Operation – Designed to deliver effective extraction with a published maximum operating noise level of approximately 58dB(A).
Dishwasher-Safe Metallic Grease Filters – Removable metal filters help capture airborne grease particles and can be cleaned in the dishwasher for convenient maintenance.
Adjustable LED Bar Lighting – Integrated LED lighting illuminates the cooking surface, improving visibility during food preparation.
Adjustable Lighting Colour Temperature – Allows the LED lighting tone to be adjusted to complement the surrounding kitchen environment.
Dimmable LED Lighting – Convenient brightness adjustment allows illumination to be tailored to cooking requirements and kitchen ambience.
Electronic Controls – Convenient controls provide straightforward adjustment of ventilation speeds, lighting and additional operating functions.
Timer Function – Allows ventilation to continue for a selected period after cooking, helping remove lingering steam and cooking odours.
Clean Air Function – Provides additional ventilation functionality to help maintain a comfortable kitchen environment.
A++ Energy Efficiency Class – Efficient motor and lighting technology help minimise electricity consumption during operation.
Premium Stainless Steel Finish – Durable stainless steel construction complements modern cooking appliances and contemporary kitchen cabinetry.
Integrated Cabinet Installation – Concealed design allows the rangehood to be incorporated into suitable overhead cupboards without requiring a prominent external canopy.
Extraction Performance & Ventilation
The ASKO CBB861SSC combines powerful extraction technology with intelligent ventilation controls to help maintain a comfortable kitchen environment.
Its extraction system delivers up to 640m³/h of airflow, helping remove steam, smoke, grease particles and unwanted cooking odours.
Four standard fan speeds allow ventilation performance to be adjusted according to cooking requirements, while the additional Boost setting provides increased extraction when preparing meals that generate greater amounts of cooking fumes.
The perimeter extraction system concentrates airflow around the edges of the extraction panel, helping capture airborne cooking particles while maintaining a discreet integrated appearance.
The energy-efficient motor delivers effective ventilation with a published maximum operating noise level of approximately 58dB(A), making the rangehood suitable for contemporary kitchens and open-plan living areas.
Intelligent Hob-to-Hood Connectivity
Designed for modern connected kitchens, the ASKO CBB861SSC features Hob-to-Hood connectivity and integrated Wi-Fi functionality.
When paired with a compatible ASKO cooktop, the rangehood can communicate with the cooking appliance and automatically coordinate extraction performance according to cooking activity.
This functionality helps simplify everyday operation by reducing the need to manually adjust ventilation while preparing meals.
ConnectLife Wi-Fi connectivity provides additional smart functionality through the compatible connected platform.
The combination of intelligent extraction control and convenient electronic operation makes the CBB861SSC a practical addition to modern kitchens.
Easy Everyday Operation & Maintenance
The ASKO CBB861SSC combines premium ventilation performance with practical cleaning and maintenance features.
Convenient electronic controls allow straightforward adjustment of fan speeds, lighting and additional operating functions.
Integrated LED bar lighting provides illumination across the cooking surface, helping improve visibility when preparing meals.
The adjustable colour temperature allows the lighting tone to complement the kitchen environment, while dimmable brightness provides additional flexibility.
Removable metallic grease filters capture airborne grease particles and can be washed in the dishwasher, simplifying routine cleaning.

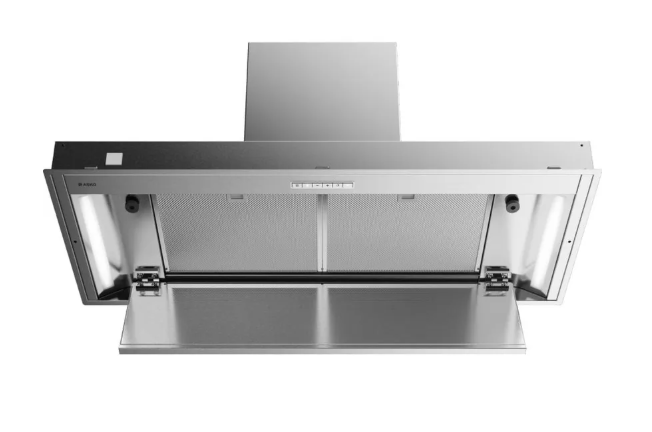

The perimeter extraction panel provides a clean appearance and allows access to the filters for maintenance.
A convenient timer function allows ventilation to continue after cooking, helping remove lingering cooking odours and moisture.
Finished in premium stainless steel, the CBB861SSC complements contemporary kitchen appliances while remaining discreetly integrated into overhead cabinetry.
Rangehood Features
86cm Concealed Undermount Rangehood
Up to 640m³/h Extraction Capacity
220W Motor
5 Ventilation Settings
4 Standard Speeds + Boost
Perimeter Extraction Technology
Hob-to-Hood Connectivity
ConnectLife Wi-Fi Connectivity
Electronic Controls
Boost Extraction Function
Clean Air Function
Timer Function
Dishwasher-Safe Metallic Grease Filters
Removable Grease Filters
Integrated LED Bar Lighting
Adjustable Lighting Colour Temperature
Dimmable LED Lighting
58dB(A) Published Maximum Noise Level
A++ European Energy Efficiency Class
Stainless Steel Finish
Concealed Cabinet Installation
Built-In Kitchen Ventilation
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
ASKO
|
|
Model
|
CBB861SSC
|
|
Product Type
|
Concealed Undermount Rangehood
|
|
Finish
|
Stainless Steel
|
|
Installation Type
|
Built-In / Undermount
|
|
Rangehood Width
|
86cm
|
|
Maximum Extraction Capacity
|
Up to 640m³/h
|
|
Number of Ventilation Settings
|
5
|
|
Standard Fan Speeds
|
4
|
|
Boost Function
|
Yes
|
|
Extraction System
|
Perimeter Extraction
|
|
Motor Type
|
Integrated Electric Motor
|
|
Motor Power
|
220W
|
|
Control Type
|
Electronic Controls
|
|
Hob-to-Hood Connectivity
|
Yes
|
|
Wi-Fi Connectivity
|
Yes
|
|
Connected Platform
|
ConnectLife
|
|
Timer Function
|
Yes
|
|
Clean Air Function
|
Yes
|
|
Grease Filter Type
|
Metallic Grease Filters
|
|
Dishwasher-Safe Filters
|
Yes
|
|
Lighting Type
|
LED Bar Lighting
|
|
Dimmable Lighting
|
Yes
|
|
Adjustable Lighting Colour
|
Yes
|
|
Maximum Published Noise Level
|
58dB(A)
|
|
European Energy Efficiency Class
|
A++
|
|
Annual Energy Consumption
|
20.7kWh
|
|
Height
|
325mm
|
|
Width
|
860mm
|
|
Depth
|
300mm
|
|
Net Weight
|
13.5kg
|
|
Packaged Height
|
440mm
|
|
Packaged Width
|
410mm
|
|
Packaged Depth
|
990mm
|
|
Packaged Weight
|
18.4kg
|
|
Electrical Supply
|
220–240V AC
|
|
Frequency
|
50/60Hz
|
|
Connected Load
|
223W
|
|
Product Code
|
743260
|
|
GTIN / EAN
|
3838782755835
|
Condition
Carton Damage and Scratch & Dent
This appliance may have damaged or replacement packaging and/or cosmetic marks, scratches or dents.
These cosmetic imperfections provide an opportunity to purchase a quality ASKO appliance at a reduced factory outlet price.
Power Requirements
Power Type: Electric
Electrical Supply: 220–240V AC
Frequency: 50/60Hz
Total Connected Load: 223W
Motor Power: 220W
Installation Type: Concealed Built-In / Undermount
Product Dimensions:
Height: 325mm
Width: 860mm
Depth: 300mm
This rangehood requires a suitable electrical connection and installation into compatible overhead kitchen cabinetry.
The rangehood is supplied configured for ducted extraction, allowing cooking vapours and odours to be exhausted outside through appropriate ventilation ducting.
Recirculation installation may be possible using the compatible ASKO recirculation modification kit and filtration components, purchased separately.
For ducted installations, connect the rangehood to appropriately sized exhaust ducting that vents to a suitable external discharge point.
Ducting, flue kits, recirculation kits and external roof or wall flashings are not included unless otherwise specified.
The overhead cabinetry must provide adequate space and structural support for the rangehood.
Installation must comply with the manufacturer's instructions, including required clearances above gas and electric cooktops, ventilation requirements and secure cabinet mounting.
Electrical connections must comply with applicable Australian electrical regulations.
Always confirm cabinetry cut-out dimensions, ducting requirements and installation clearances against the manufacturer's installation manual before installation.
Warranty
Enjoy peace of mind with a 2 Year Manufacturer’s Warranty.
