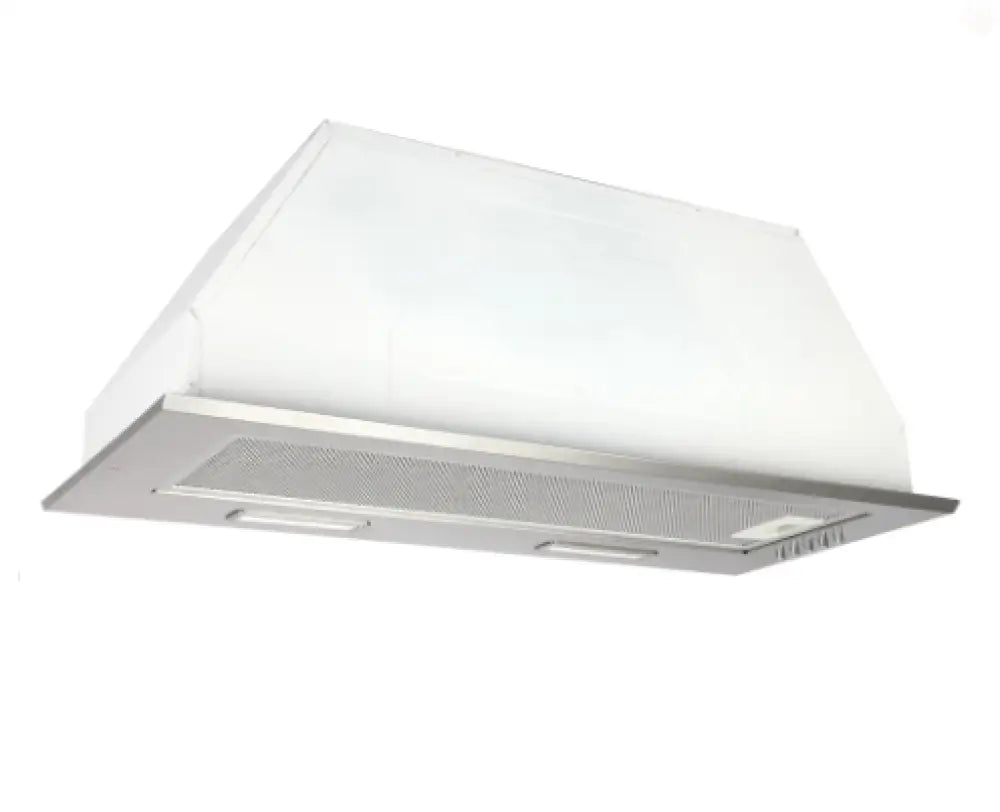

Emilia CK75UCF 75cm Under Cupboard Rangehood – Stainless Steel
Upgrade your kitchen ventilation with the practical and discreet Emilia CK75UCF 75cm Under Cupboard Rangehood. Designed to integrate neatly into overhead cabinetry, this rangehood combines 700m³/h maximum extraction, 3 fan speeds, twin LED lighting and an easy-clean aluminium mesh filter to provide effective everyday ventilation while maintaining a streamlined kitchen appearance.
Finished in durable stainless steel, the CK75UCF features simple push-button controls, a powerful onboard motor and a 150mm ducting outlet. Its generous 75cm width makes it suitable for installation over many 60–90cm cooktops, providing broader extraction coverage than a standard 60cm rangehood.
This appliance is supplied Brand New in a Box and is backed by a Full 2 Year Manufacturer’s Warranty.
Key Features
700m³/h Maximum Extraction – Powerful airflow helps remove cooking steam, smoke, grease and odours from the kitchen.
75cm Under Cupboard Design – Designed to integrate neatly underneath overhead cabinetry while providing generous coverage over the cooking surface.
Suitable for 60–90cm Cooktops – The 750mm width makes the CK75UCF a versatile choice for a variety of kitchen and cooktop configurations.
3 Fan Speeds – Three selectable extraction levels allow airflow to be adjusted depending on cooking conditions.
Push Button Controls – Straightforward mechanical controls provide convenient operation of fan speeds and lighting.
Twin LED Lights – Two square 2W LED lights provide efficient illumination across the cooking surface.
Aluminium Mesh Filter – Easy-clean aluminium mesh filtration helps capture airborne grease before it enters the extraction system.
58dB Noise Rating – Provides strong everyday extraction with a rated operating noise level of 58dB.
150mm Ducting Outlet – Large ducting connection supports the rangehood's 700m³/h extraction capacity.
Ducted Operation – Designed for external ducting to remove cooking vapours and odours from the kitchen rather than recirculating them internally.
Extraction Performance
The Emilia CK75UCF provides a maximum extraction capacity of 700 cubic metres per hour, making it a practical choice for everyday household cooking.
Three fan speeds allow extraction performance to be adjusted according to cooking requirements. Lower settings can be used for lighter cooking, while higher extraction can be selected when frying, boiling or preparing meals that produce greater amounts of steam and cooking vapours.
Unlike the Quiet Air off-board models, the CK75UCF uses an onboard motor, making it a straightforward under-cupboard rangehood solution without requiring a separate remote motor installation.
Design
Finished in stainless steel, the Emilia CK75UCF is designed to sit discreetly beneath or within overhead cabinetry, helping maintain clean lines throughout the kitchen.
At 750mm wide, it provides additional coverage compared with a conventional 60cm rangehood while remaining compact enough for many existing cabinetry configurations.
Twin square LED lights are positioned underneath the rangehood to illuminate the cooking area, while push-button controls provide simple access to its three extraction speeds.
Rangehood Features
75cm Under Cupboard Design
700m³/h Maximum Extraction
3 Fan Speeds
Onboard Motor
Stainless Steel Construction
Push Button Controls
Twin Square LED Lights
2 x 2W LED Lighting
Aluminium Mesh Grease Filter
58dB Noise Rating
150mm Ducting Outlet
Ducted Operation
10 Amp Plug & Lead
1 Metre Power Cord
Installation Fittings Included
Instruction & Installation Guide Included
Technical Specifications
| Specification |
Details |
| Product Type |
Under Cupboard Rangehood |
| Model |
CK75UCF |
| Brand |
Emilia |
| Series |
Classic Series |
| Rangehood Width |
75cm |
| Finish |
Stainless Steel |
| Installation |
Under Cupboard |
| Motor Type |
Onboard |
| Maximum Extraction |
700m³/h |
| Fan Speeds |
3 |
| Controls |
Push Button |
| Lighting |
2 x Square LED |
| LED Power |
2W + 2W |
| Filtration |
Aluminium Mesh Filter |
| Noise Level |
58dB |
| Operation |
Ducted |
| Recirculation |
No |
| Duct Outlet |
150mm |
| Electrical Connection |
10A Plug & Lead |
| Power Cord |
1 Metre |
| Voltage |
240V |
| Frequency |
50Hz |
| Total Power Consumption |
234W |
| Width |
750mm |
| Height |
252mm |
| Body Depth |
Approx. 286mm* |
| Packed Dimensions |
800mm W x 310mm D x 320mm H |
| Unpacked Weight |
11kg |
| Packed Weight |
12kg |
| GTIN / EAN |
0799439358294 |
| Manufacturer’s Warranty |
2 Years |
*Check installation dimensions against the physical appliance and current installation documentation before cabinetry is manufactured or modified. The manufacturer's current data sheet specifically notes that certain dimensions should be checked on the actual product.
Installation Requirements
Installation Type: Under Cupboard / Concealed Rangehood
Product Width: 750mm
Product Height: 252mm
Ducting Diameter: 150mm
Operation: Externally Ducted
Electrical Connection: 10 Amp Plug & Lead
Power Cord: 1 Metre
Power Supply: 240V / 50Hz
Total Power Consumption: 234W
The CK75UCF requires external ducting and does not support recirculation according to Emilia's current official data sheet. A suitable external ducting system and outlet must therefore be provided.
Installation should be completed by a suitably qualified installer in accordance with Emilia's installation instructions and applicable Australian requirements. Product and cabinetry dimensions should be confirmed before installation begins.
Warranty
This Emilia CK75UCF is supplied Brand New in a Box.
Enjoy complete peace of mind with a Full 2 Year Manufacturer’s Warranty. Emilia's official specification states that proof of purchase and correct installation by a qualified installer are required for warranty service.
