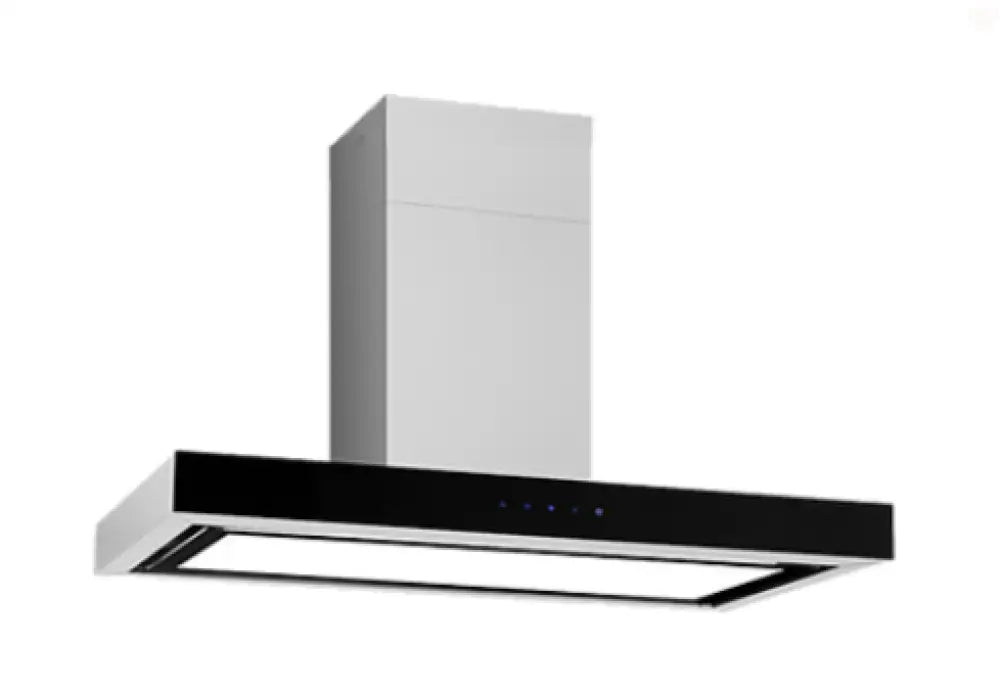

Glem Gas GQA90TBLED 90cm Quiet Air Off-Board Canopy Rangehood – Stainless Steel

Upgrade your kitchen ventilation with the powerful and innovative Glem Gas GQA90TBLED 90cm Quiet Air Canopy Rangehood. Designed to deliver high-performance extraction while reducing kitchen noise, this premium rangehood combines 1200m³/h maximum extraction, an off-board ceiling-cavity motor, perimeter filtration and full LED panel lighting for effective and comfortable everyday ventilation.

Finished in contemporary stainless steel, the GQA90TBLED features a 3-speed fan, a hinged filter access panel and two mesh grease filters. Its standout full LED panel provides bright, low-consumption, shadow-reducing illumination across the cooking surface.

This appliance is supplied Brand New in a Box and is backed by a Full 2 Year Manufacturer’s Warranty, plus a 7 Year Warranty on the Motor.

Key Features

1200m³/h Maximum Extraction – Powerful airflow helps remove cooking steam, smoke, airborne grease and odours from the kitchen.

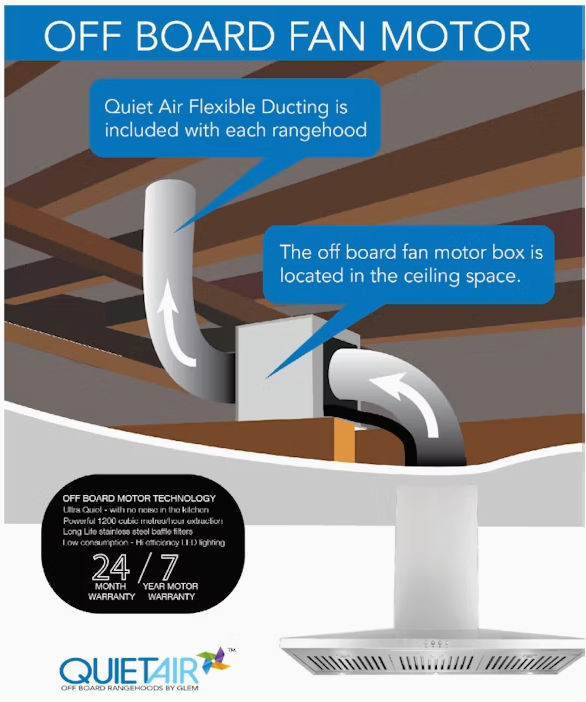

Quiet Air Off-Board Motor – The fan motor is installed remotely within the ceiling cavity rather than directly inside the rangehood, moving the primary source of motor noise away from the kitchen.

90cm Wide Canopy – The 900mm-wide design is ideally suited to larger cooktops and freestanding cooking appliances.

Full LED Panel Lighting – A large low-consumption LED panel provides broad illumination across the cooking surface.

Shadow-Proof Lighting – The full lighting panel is designed to minimise shadows over the cooktop, providing improved visibility when preparing and cooking food.

Perimeter Filtration System – Cooking vapours are drawn around the perimeter of the panel while the filters remain neatly concealed behind it.

3 Fan Speeds – Three selectable extraction speeds allow airflow to be adjusted depending on the amount of steam, smoke and odour being produced.

Hinged Filter Access Panel – The panel hinges down to provide convenient access to the grease filters for routine cleaning and maintenance.

2 Mesh Grease Filters – Removable mesh filters help capture airborne grease before it enters the ducting system.

150mm Ducting Outlet – A large 150mm outlet supports the rangehood's high-capacity extraction system.

Complete Installation Kit – Supplied with the remote motor and installation components, including two 2.5 metre lengths of ducting. The external wall or roof vent is not included.

Extraction Performance

The Glem Gas GQA90TBLED delivers a maximum extraction capacity of 1200 cubic metres per hour, providing substantial airflow for everyday cooking as well as more demanding high-heat cooking.

Its key advantage is the off-board motor system. Rather than locating the fan motor directly above the cooktop, the motor unit is installed separately within the ceiling cavity. This helps substantially reduce the amount of motor noise experienced within the kitchen.

Three selectable fan speeds allow extraction performance to be matched to cooking conditions, while the 150mm ducting system provides the airflow capacity required by the remote motor.

Design

Finished in stainless steel, the Glem Gas GQA90TBLED features a clean square-line canopy designed to complement contemporary kitchens and stainless steel cooking appliances.

The canopy measures 900mm wide x 500mm deep, making it particularly well suited to 90cm cooking surfaces. Its adjustable flue allows the overall installation height to range from approximately 570mm to 1050mm.

A major design feature is the full LED lighting panel, which provides broad, shadow-reducing illumination rather than relying on small individual lamps.

The panel also forms part of the perimeter extraction design and hinges down to provide access to the two mesh filters.

Rangehood Features

90cm Square-Line Canopy
Quiet Air Off-Board Motor System
1200m³/h Maximum Extraction
3 Fan Speeds
Perimeter Filtration System
Full LED Panel Lighting
Shadow-Proof Cooking Illumination
Low-Consumption LED Lighting
Hinged Filter Access Panel
2 Mesh Grease Filters
150mm Ducting Outlet
Remote Ceiling-Cavity Motor
Adjustable Stainless Steel Flue
Full Installation Kit
2 x 2.5m Lengths of Ducting
3.8m Total Motor-to-Rangehood Cable Length

Technical Specifications

Specifications are based on Glem Gas's official GQA90TBLED data sheet.

Included Accessories

Remote Fan Motor Unit – Separate fan motor designed for installation within a suitable ceiling cavity.

Flexible Ducting – Two 2.5 metre lengths of ducting are included to assist with connection of the canopy and remote motor.

Mesh Grease Filters – Two removable mesh filters are positioned behind the hinged access panel.

Installation Kit – Supplied as a complete installation package ready for professional installation.

Please Note: The external wall or roof vent is not included and must be supplied separately where required.

Installation Requirements

Installation Type: Wall Mounted / Externally Ducted Off-Board Canopy

Rangehood Dimensions: 900mm W x 500mm D

Adjustable Overall Height: 570–1050mm

Ducting Diameter: 150mm

Motor Location: Suitable Ceiling Cavity

Motor-to-Rangehood Cable Length: 3.8m Total

Supplied Ducting: 2 x 2.5m Lengths

Minimum Clearance Above Gas Cooktop: 650mm

Minimum Clearance Above Electric Cooktop: 550mm

The GQA90TBLED requires a suitable ceiling cavity for installation of the remote motor. The rangehood must be externally ducted and installed in accordance with Glem Gas installation instructions and applicable Australian requirements.

Because the effectiveness and noise performance of an off-board rangehood can be affected by duct length, bends and the external vent arrangement, professional installation is recommended.

Warranty

This Glem Gas GQA90TBLED is supplied Brand New in a Box.

Enjoy complete peace of mind with a Full 2 Year Manufacturer’s Warranty, plus a 7 Year Manufacturer’s Warranty on the Motor.
