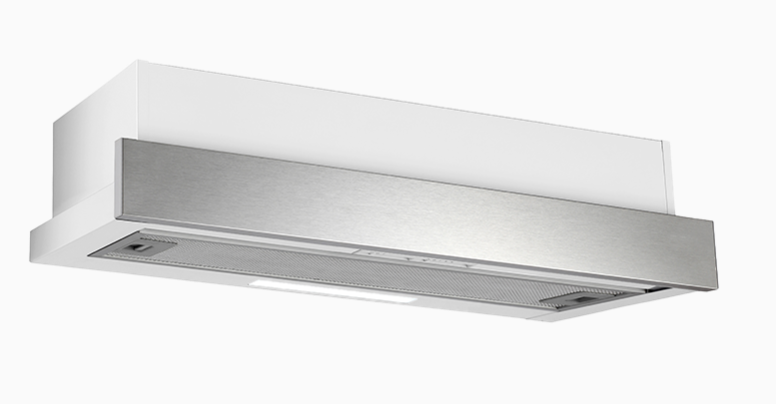

Euromaid ESL90RDS 90cm Slide-Out Rangehood – Stainless Steel
Upgrade your kitchen ventilation with the practical Euromaid ESL90RDS 90cm Slide-Out Rangehood. Brand new in a box – carton damage, this rangehood combines a 440m³/hr extraction rate with a discreet slide-out design, providing effective everyday ventilation while integrating neatly into your kitchen cabinetry.
Featuring three fan speeds, dual aluminium mesh filters, energy-efficient LED strip lighting and the flexibility of ducted or recirculating operation, the ESL90RDS provides a versatile ventilation solution for wider 90cm cooking areas.
Key Features
440m³/hr Extraction Rate – Provides effective airflow to help remove cooking odours, steam, smoke and airborne grease from the kitchen.
90cm Slide-Out Design – Wide 900mm format provides excellent coverage over compatible cooking surfaces while integrating neatly into kitchen cabinetry.
3 Fan Speeds – Flexible extraction settings allow airflow to be adjusted depending on your cooking requirements.
Slide Controls – Simple three-speed slide control provides straightforward adjustment of the extraction level.
2 x Aluminium Mesh Filters – Durable filters help capture airborne grease and cooking residue.
LED Strip Lighting – Integrated LED strip provides efficient illumination across the cooking surface below.
Ducted or Recirculating Operation – Can be externally ducted through the 120mm top outlet or configured for recirculating operation.
Charcoal Filters Included – Includes one set of CF110 charcoal filters for recirculating installation.
3m Flexible Ducting Included – Supplied with 3 metres of 120mm flexible ducting for added installation convenience.
Stainless Steel Fascia – Stainless Steel fascia provides a clean contemporary appearance, complemented by a white rangehood housing.
Performance & Efficiency
The ESL90RDS delivers a maximum extraction rate of 440m³/hr, providing effective ventilation for everyday cooking. Three fan speeds allow the extraction level to be adjusted depending on cooking conditions, while the 200W motor provides reliable airflow.
Two aluminium mesh filters help capture airborne grease, while the integrated 5W LED strip illuminates the cooking area below. With a maximum stated noise level of 56dB(A), the ESL90RDS balances everyday extraction performance with practical operation.
Design
Finished with a Stainless Steel fascia and white housing, the ESL90RDS features a discreet 90cm slide-out design that integrates neatly into compatible kitchen cabinetry.
The rangehood measures 900mm wide and extends from 300mm to 450mm deep when required. Both 40mm and 80mm fascia sizes are included, with the 80mm fascia fitted as standard.
Fan Speeds
Low
Medium
High
Technical Specifications
| Specification |
Details |
| Product Type |
Slide-Out Rangehood |
| Size |
90cm |
| Finish |
Stainless Steel Fascia / White Housing |
| Fascia Sizes |
40mm / 80mm Included |
| Maximum Extraction |
440m³/hr |
| Fan Speeds |
3 |
| Controls |
3 Speed Slide Control |
| Filters |
2 x Aluminium Mesh |
| Lighting |
1 x LED Strip |
| LED Wattage |
5W |
| Noise Level |
56dB(A)* |
| Extraction Type |
Ducted or Recirculating |
| Ducted Outlet |
120mm Top Outlet |
| Recirculating Outlet |
Front Vent Behind Fascia |
| Motor Wattage |
200W |
| Total Wattage |
205W |
| Electrical Supply |
220–240V / 50Hz |
| Duct Diameter |
120mm |
| Cabinet Required |
900mm |
| Width |
900mm |
| Height |
176mm |
| Depth |
300–450mm |
| Net Weight |
10.5kg |
| Gross Weight |
12kg |
*Noise reading taken at top speed in accordance with the manufacturer's stated testing standard.
Accessories Included
1 x Set CF110 Charcoal Filters
1 x 3m Length 120mm Flexible Ducting
Mounting Template
Installation Requirements
Installation Type: Slide-Out / Under Cabinet
Electrical Supply: 220–240V / 50Hz
Total Wattage: 205W
Motor Wattage: 200W
Duct Diameter: 120mm
Cabinet Requirement: 900mm
Product Dimensions: 900mm W x 176mm H x 300–450mm D
Ventilation: Ducted or recirculating operation
Ducted Operation: 120mm top outlet
Recirculating Operation: Front vent behind fascia with CF110 charcoal filters
Installation must be completed in accordance with the manufacturer's installation instructions and applicable requirements.
Warranty
Enjoy complete peace of mind with a 2 Year Parts and Labour Manufacturer's Warranty.
