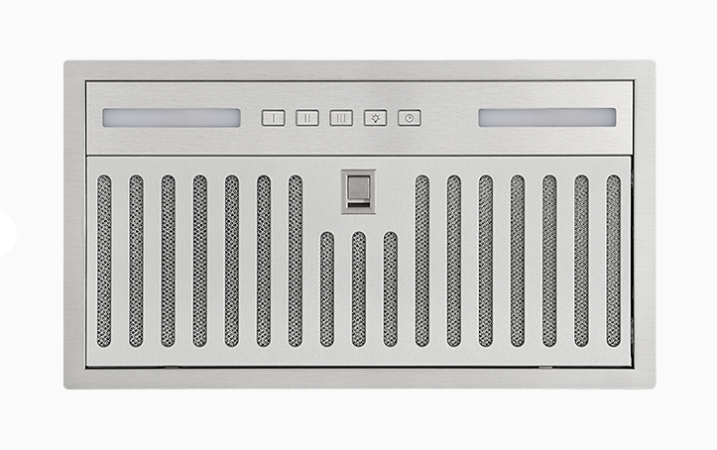

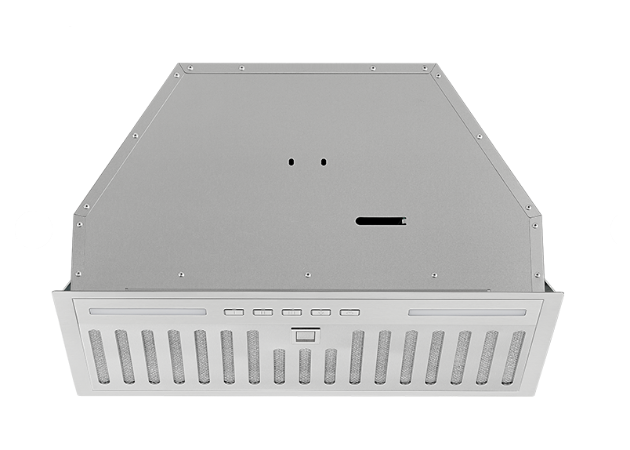

Euromaid EUM52S 52cm Undermount Rangehood – Stainless Steel
Upgrade your kitchen ventilation with the powerful and discreet Euromaid EUM52S 52cm Undermount Rangehood. Brand new in a box – carton damage, this integrated rangehood delivers an impressive 700m³/hr extraction rate while fitting neatly beneath your kitchen cabinetry for a clean, streamlined appearance.
Featuring three fan speeds, aluminium mesh grease filters, efficient LED lighting, simple push-button controls and a powerful 220W motor, the EUM52S provides effective everyday ventilation while maintaining a discreet and contemporary Stainless Steel design.
Key Features
700m³/hr Extraction Rate – Powerful airflow helps rapidly remove cooking odours, steam, smoke and airborne grease from the kitchen.
52cm Undermount Design – Compact integrated design fits neatly beneath compatible kitchen cabinetry for a streamlined appearance.
3 Fan Speeds – Flexible extraction settings allow airflow to be adjusted to suit different cooking conditions.
Push Button Controls – Simple controls provide straightforward adjustment of fan speed and lighting.
2 x Aluminium Mesh Filters – Durable grease filters help capture airborne grease and cooking residue.
2 x 2W LED Lights – Energy-efficient integrated LED lighting provides excellent illumination across the cooking surface.
220W Motor – Powerful motor delivers reliable airflow and strong everyday extraction performance.
150mm Duct Diameter – Large duct outlet supports effective externally ducted ventilation.
Recirculation Option – Can be configured for recirculating operation using compatible CF110 carbon filters, sold separately.
Stainless Steel Finish – Contemporary Stainless Steel construction integrates neatly with a wide range of modern kitchen appliances.
Performance & Efficiency
Designed for effective everyday kitchen ventilation, the EUM52S delivers a maximum extraction rate of 700m³/hr from its powerful 220W motor.
Three fan speeds allow airflow to be adjusted depending on cooking conditions, while two aluminium mesh filters help capture airborne grease. Dual 2W LED lights provide efficient illumination across the cooking surface below.
Design
Finished in Stainless Steel, the EUM52S features a discreet 52cm undermount design that integrates neatly beneath compatible kitchen cabinetry.
Measuring just 520mm wide, the rangehood maintains a streamlined kitchen appearance while providing powerful extraction performance. Its compact concealed design makes it particularly suited to contemporary kitchens where minimal visual impact is preferred.
Fan Speeds
Low
Medium
High
Technical Specifications
| Specification |
Details |
| Product Type |
Undermount Rangehood |
| Size |
52cm |
| Finish |
Stainless Steel |
| Maximum Extraction |
700m³/hr |
| Fan Speeds |
3 |
| Controls |
Push Button |
| Filters |
2 x Aluminium Mesh |
| Carbon Filter |
CF110 – Sold Separately |
| Lighting |
2 x 2W LED |
| Noise Level |
70dB(A)* |
| Motor Wattage |
220W |
| Total Wattage |
224W |
| Electrical Connection |
10A Plug |
| Voltage |
220–240V |
| Frequency |
50Hz |
| Power Cord Length |
1.5m |
| Duct Diameter |
150mm |
| Width |
520mm |
| Height |
275mm |
| Depth |
290mm |
| Cut-Out |
500mm x 265mm |
| Net Weight |
7kg |
| Gross Weight |
9kg |
*Noise reading taken at top speed in accordance with the manufacturer's stated testing standard.
Installation Requirements
Installation Type: Undermount / Integrated
Electrical Connection: 10A Plug
Power Supply: 220–240V / 50Hz
Total Wattage: 224W
Motor Wattage: 220W
Duct Diameter: 150mm
Product Dimensions: 520mm W x 275mm H x 290mm D
Cut-Out Dimensions: 500mm x 265mm
Recirculation: CF110 carbon filters are required for recirculating operation and are sold separately.
For optimum performance, Euromaid recommends installation with a clearance of 650–750mm between the cooking surface and the underside of the rangehood, subject to applicable installation requirements.
Warranty
Enjoy complete peace of mind with a 2 Year Parts and Labour Manufacturer's Warranty.
