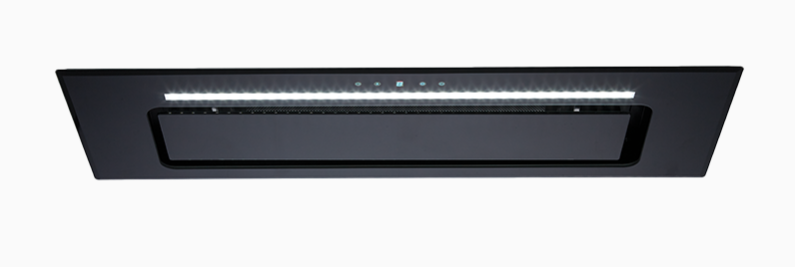

Euromaid UCG90B 90cm Deluxe Glass Undermount Rangehood – Black Glass
Upgrade your kitchen ventilation with the powerful and sophisticated Euromaid UCG90B 90cm Deluxe Glass Undermount Rangehood. Brand new in a box – carton damage, this premium integrated rangehood combines an impressive 1,000m³/hr extraction rate with sleek Black Tempered Glass, providing powerful ventilation while integrating neatly beneath your kitchen cabinetry.
Featuring three fan speeds, LED backlit touch controls, perimeter aspiration, front strip LED lighting and a convenient timer function, the UCG90B delivers excellent extraction performance while maintaining a clean and contemporary appearance.
Key Features
1,000m³/hr Extraction Rate – Powerful airflow rapidly removes cooking odours, steam, smoke and airborne grease from the kitchen.
90cm Deluxe Undermount Design – Wide 900mm format provides excellent coverage over compatible cooking surfaces while integrating neatly into kitchen cabinetry.
3 Fan Speeds – Flexible extraction settings allow airflow to be adjusted to suit different cooking conditions.
LED Backlit Touch Controls – Modern electronic controls provide quick and intuitive adjustment of extraction settings.
Perimeter Aspiration – Draws cooking fumes around the perimeter of the rangehood to provide effective extraction while maintaining a sleek glass appearance.
Front Strip LED Lighting – Integrated LED lighting provides excellent illumination across the cooking surface below.
Up to 9-Minute Timer – Convenient timer allows the rangehood to continue operating after cooking to help clear residual steam and odours.
Aluminium Grease Filter – Removable aluminium filter helps capture airborne grease and cooking residue.
150mm Duct Diameter – Large duct outlet supports effective externally ducted ventilation.
Black Tempered Glass Finish – Premium black glass creates a sophisticated contemporary appearance suited to modern kitchens.
Performance & Efficiency
Designed for powerful kitchen ventilation, the UCG90B delivers an impressive maximum airflow of 1,000m³/hr.
Three fan speeds provide flexibility for different cooking conditions, while perimeter aspiration helps efficiently draw cooking fumes into the extraction system. The integrated front LED strip provides excellent illumination across the cooking surface.
Design
Finished in premium Black Tempered Glass, the UCG90B provides a sophisticated alternative to traditional stainless steel undermount rangehoods.
Its wide 900mm format is designed to suit a 900mm cabinet, providing excellent coverage while maintaining a streamlined integrated appearance. LED backlit touch controls complement the black glass surface for a clean and contemporary finish.
Fan Speeds
Low
Medium
High
Technical Specifications
| Specification |
Details |
| Product Type |
Deluxe Glass Undermount Rangehood |
| Size |
90cm |
| Finish |
Black Tempered Glass |
| Maximum Airflow |
1,000m³/hr |
| Fan Speeds |
3 |
| Controls |
LED Backlit Touch Controls |
| Timer |
Up to 9 Minutes |
| Perimeter Aspiration |
Yes |
| Filter |
1 x Aluminium Grease Filter |
| Lighting |
Front Strip LED |
| Noise Level |
62dB(A) |
| Extraction Type |
Ducted |
| Total Wattage |
270W |
| Electrical Connection |
10A, 3 Pin Plug |
| Voltage |
220–240V |
| Frequency |
50Hz |
| Power Cord Length |
1.5m |
| Duct Diameter |
150mm |
| Cabinet Size |
900mm |
Installation Requirements
Installation Type: Undermount / Under Cupboard
Electrical Connection: 10A, 3 Pin Plug
Power Supply: 220–240V / 50Hz
Total Wattage: 270W
Power Cord: 1.5m
Duct Diameter: 150mm
Cabinet Requirement: Designed to suit a 900mm cabinet
Ventilation: Ducted installation
Installation must be completed in accordance with the manufacturer's installation instructions and applicable requirements.
Warranty
Enjoy complete peace of mind with a 2 Year Manufacturer's Warranty.
