Glem Gas GQA120TBLED 120cm Quiet Air Off-Board Canopy Rangehood – Stainless Steel
Upgrade your kitchen ventilation with the powerful and innovative Glem Gas GQA120TBLED 120cm Quiet Air Canopy Rangehood. Designed for large cooktops and serious home cooking, this premium rangehood combines 1200m³/h maximum extraction, an off-board remote motor, perimeter filtration and a full LED lighting panel to deliver powerful extraction with significantly reduced motor noise in the kitchen.
Finished in contemporary stainless steel, the GQA120TBLED features 3 fan speeds, touch controls, washable mesh filters and an impressive shadow-proof LED panel that provides broad, even illumination across the cooking surface. The remote motor is installed separately within the ceiling space, helping keep the main source of rangehood noise away from the kitchen.
This appliance is supplied Brand New in a Box and is backed by a Full 2 Year Manufacturer’s Warranty, plus a 7 Year Warranty on the Motor.
Key Features
1200m³/h Maximum Extraction – Powerful airflow helps quickly remove cooking steam, smoke, grease and odours from larger kitchen spaces.
Quiet Air Off-Board Motor – The fan motor is positioned remotely within the ceiling cavity rather than directly inside the rangehood, helping provide considerably quieter operation within the kitchen.
120cm Wide Canopy – Generous 1200mm width makes the GQA120TBLED particularly well suited to larger 90cm and 120cm cooking appliances.
Full LED Lighting Panel – A large, low-consumption LED panel provides bright and even illumination across the cooking area while helping eliminate the shadows associated with conventional rangehood lighting.
Shadow-Proof Lighting – The broad LED panel distributes light across the cooking surface, providing excellent visibility while preparing meals.
Perimeter Filtration System – Air is drawn around the perimeter of the LED panel to provide effective capture of cooking vapours while maintaining the rangehood's clean appearance.
3 Fan Speeds – Select between three extraction levels depending on the amount of steam, smoke and odour being produced.
Touch Controls – Convenient electronic touch controls provide straightforward access to fan speeds and lighting while contributing to the rangehood's contemporary design.
Hinged Filter Access Panel – The LED panel hinges down to provide convenient access to the removable mesh grease filters for routine cleaning.
150mm Ducting Outlet – Large 150mm outlet supports the high airflow requirements of the rangehood.
Complete Installation Kit – Supplied with the remote fan motor, flexible ducting, flue components and installation hardware required for installation. An external roof or wall vent is not included.
Extraction Performance
The Glem Gas GQA120TBLED delivers a maximum extraction capacity of 1200 cubic metres per hour, providing the airflow required for larger cooking surfaces and demanding cooking applications.

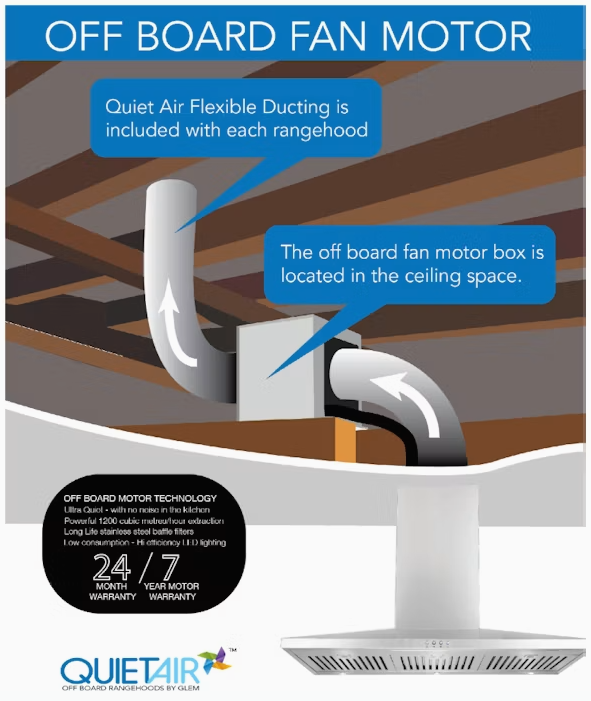

Unlike a conventional canopy rangehood where the fan motor is positioned directly above the cooking surface, the Quiet Air system separates the motor from the canopy. The remote fan motor is installed within a suitable ceiling or roof space, moving the primary source of fan noise away from the kitchen.
Three selectable fan speeds allow extraction performance to be adjusted to suit cooking conditions, from lighter everyday cooking through to high-heat frying and other cooking methods that produce greater quantities of steam and smoke.
Design

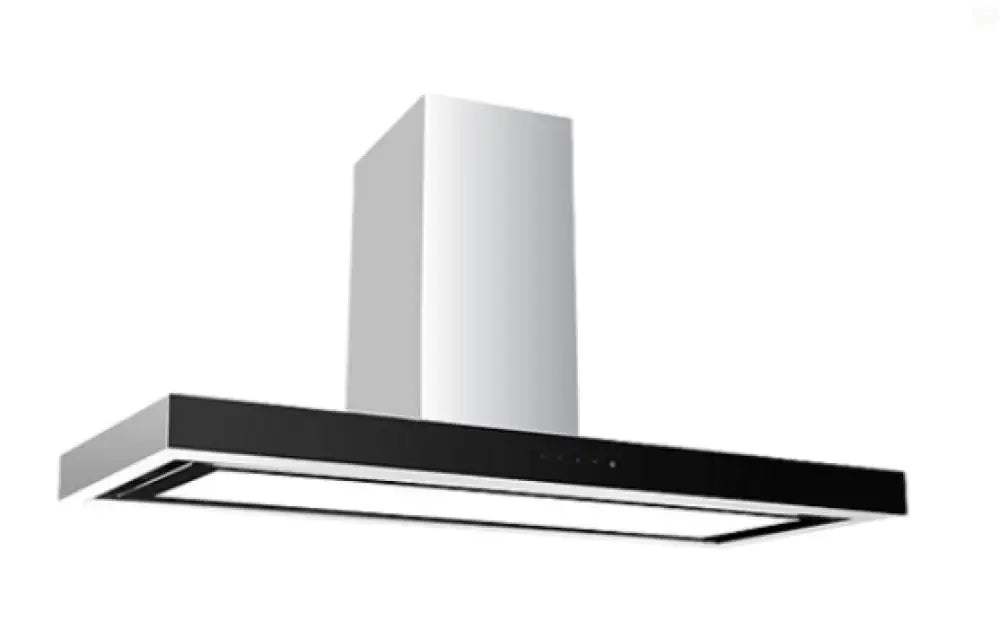

Finished in stainless steel, the Glem Gas GQA120TBLED features a substantial 1200mm-wide square-line canopy designed to complement larger freestanding cookers and cooktops.
One of its standout design features is the full-width LED lighting panel. Rather than relying on small individual lamps, the broad panel produces bright, low-consumption and shadow-reducing illumination across the cooking area.
The LED panel also forms part of the perimeter extraction system and hinges down to provide access to the removable mesh grease filters.
The canopy measures 1200mm wide x 500mm deep, with an adjustable overall height of approximately 570–1050mm.
Rangehood Features
120cm Square-Line Canopy
Quiet Air Off-Board Motor System
1200m³/h Maximum Extraction
3 Fan Speeds
Perimeter Extraction System
Full LED Lighting Panel
Shadow-Proof Cooking Illumination
Low-Consumption LED Lighting
Touch Controls
Hinged Filter Access Panel
Removable Mesh Grease Filters
150mm Ducting Outlet
Remote Ceiling-Cavity Motor
Adjustable Stainless Steel Flue
Complete Installation Kit
2 x 2.5m Flexible Ducting Lengths
3.8m Total Motor-to-Rangehood Cable Length
Technical Specifications
| Specification |
Details |
| Product Type |
Off-Board Canopy Rangehood |
| Model |
GQA120TBLED |
| Brand |
Glem Gas |
| Series |
Quiet Air |
| Rangehood Width |
120cm |
| Finish |
Stainless Steel |
| Installation |
Wall Mounted Canopy |
| Maximum Extraction |
1200m³/h |
| Fan Speeds |
3 |
| Motor Type |
Remote / Off-Board |
| Motor Location |
Ceiling / Roof Cavity |
| Filtration |
Perimeter Filtration |
| Grease Filters |
Removable Mesh |
| Lighting |
Full LED Panel |
| Controls |
Touch Controls |
| Ducting Diameter |
150mm |
| Electrical Connection |
10A Plug & Lead |
| Power |
265W |
| Width |
1200mm |
| Depth |
500mm |
| Minimum Height |
570mm |
| Maximum Height |
1050mm |
| Net Weight |
Approx. 31kg |
| Packed Dimensions |
1300mm W x 650mm H x 520mm D |
| Packed Weight |
Approx. 39.5kg |
| GTIN / EAN |
0799439590960 |
| Manufacturer’s Warranty |
2 Years |
| Motor Warranty |
7 Years |
Glem's official data sheet confirms the 1200m³/h extraction rate, 150mm outlet, 3-speed operation, remote motor configuration and warranty coverage.
Included Accessories
Remote Fan Motor Unit – Separate motor assembly designed for installation away from the rangehood within a suitable ceiling or roof space.
Flexible Ducting – Two approximately 2.5 metre lengths of ducting are supplied for connection between the canopy, remote motor and external vent.
Stainless Steel Flue Sections – Adjustable flue covers provide a finished appearance between the canopy and ceiling.
Mesh Grease Filters – Removable filters capture airborne grease and can be accessed by lowering the hinged panel.
Installation Hardware – Required mounting brackets, connectors, fasteners and associated installation components are supplied.
Please Note: The external roof or wall vent is not included.
Installation Requirements
Installation Type: Wall Mounted / Ducted Off-Board Canopy
Product Dimensions: 1200mm W x 500mm D
Adjustable Height: Approximately 570–1050mm
Ducting Diameter: 150mm
Electrical Connection: 10A Plug & Lead
Motor Location: Suitable Ceiling or Roof Cavity
Motor-to-Rangehood Cable Length: Approximately 3.8m
The GQA120TBLED requires suitable space within the ceiling or roof cavity for installation of the remote fan motor. Glem specifically notes that where there is no suitable location for the remote motor—such as some apartment installations—the rangehood may not be suitable.
The rangehood must be externally ducted and installed in accordance with Glem Gas installation instructions and applicable Australian requirements. The manufacturer's installation guide specifies minimum mounting clearances of 650mm above a gas cooking surface and 550mm above an electric cooking surface.
Warranty
This Glem Gas GQA120TBLED is supplied Brand New in a Box.
Enjoy complete peace of mind with a Full 2 Year Manufacturer’s Warranty, plus an extended 7 Year Manufacturer’s Warranty on the Motor.
