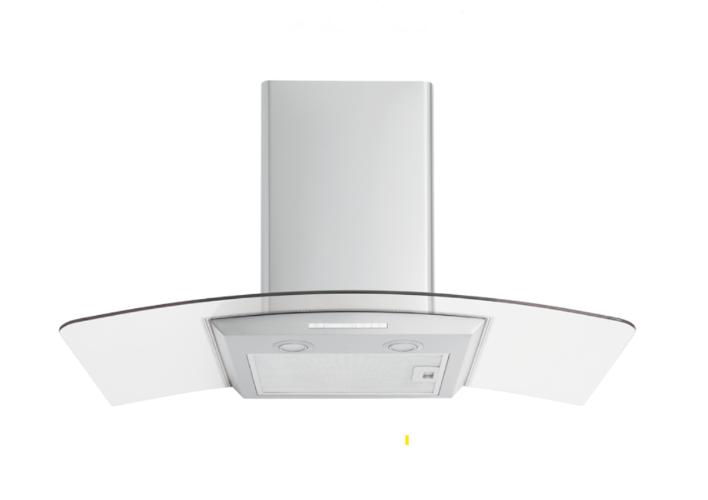

Technika TB10900SS-5 90cm Curved Glass Canopy Rangehood – Stainless Steel
Upgrade your kitchen ventilation with the stylish and powerful Technika TB10900SS-5 90cm Curved Glass Canopy Rangehood. Designed to suit wider cooktops and contemporary kitchens, this wall-mounted rangehood combines a generous 760m³/h extraction rate, four fan settings and efficient LED lighting to help remove cooking vapours, smoke and odours from your kitchen.
Finished in stainless steel with a distinctive curved glass canopy, the TB10900SS-5 features backlit electronic button controls, an aluminium mesh grease filter and convenient timer functionality. Its 90cm width makes it an ideal companion for larger cooktops and freestanding cookers.
Key Features
760m³/h Extraction Rate – Powerful extraction helps remove steam, cooking vapours and unwanted odours from the kitchen.
90cm Wide Design – Generous 900mm width provides excellent coverage over larger cooktops and cooking appliances.
Curved Glass Canopy – Combines a contemporary curved-glass profile with stainless steel for a stylish statement above your cooking area.
3 Speeds + Turbo – Choose between three regular extraction speeds plus a powerful Turbo setting when additional ventilation is required.
Ducted Extraction – Designed for ducted operation to vent cooking vapours and odours outside the home.
Aluminium Mesh Filter – Removable aluminium mesh grease filter helps capture airborne grease produced during cooking.
LED Lighting – Two efficient 2W LED lights provide bright illumination over the cooking surface.
Backlit Electronic Controls – Convenient electronic button controls provide straightforward access to fan speeds, lighting and other functions.
Timer Function – Built-in timer provides additional convenience when ventilating your kitchen after cooking.
Wall-Mounted Installation – Designed to mount directly above your cooking appliance for a clean and integrated kitchen installation.
Performance & Extraction
The Technika TB10900SS-5 delivers a powerful maximum extraction rate of 760m³/h, providing the ventilation performance required for busy kitchens and high-intensity cooking.
Three standard fan speeds allow extraction performance to be adjusted depending on your cooking requirements, while the additional Turbo setting provides increased extraction when dealing with heavier steam, smoke or cooking odours.
The rangehood is designed for ducted operation, allowing extracted air to be directed outside the home rather than returned to the kitchen. Its aluminium mesh filter captures airborne grease and can be removed for regular cleaning.
Design
Finished in stainless steel, the Technika TB10900SS-5 combines a contemporary curved glass canopy with a traditional stainless steel chimney design.
At 900mm wide, the rangehood is particularly well suited to larger cooking appliances while creating a strong visual feature above the cooktop.
Backlit electronic controls are integrated into the front of the rangehood for convenient operation, while two LED lights underneath the canopy illuminate the cooking area.
Rangehood Features
760m³/h Maximum Extraction
3 Fan Speeds + Turbo
Ducted Extraction
Curved Glass Canopy
Stainless Steel Finish
Aluminium Mesh Grease Filter
2 x 2W LED Lights
Backlit Electronic Button Controls
Timer Function
Wall-Mounted Installation
150mm Duct Outlet
Technical Specifications
| Specification |
Details |
| Product Type |
Canopy Rangehood |
| Model |
TB10900SS-5 |
| Finish |
Stainless Steel |
| Canopy Design |
Curved Glass |
| Installation Type |
Wall Mounted |
| Width |
900mm |
| Maximum Height |
1015mm |
| Depth |
480mm |
| Extraction Rate |
760m³/h |
| Extraction Type |
Ducted |
| Fan Speeds |
3 + Turbo |
| Filter Type |
Aluminium Mesh |
| Number of Filters |
1 |
| Lighting Type |
LED |
| Number of Lights |
2 |
| Light Power |
2W Each |
| Controls |
Electronic Backlit Buttons |
| Timer |
Yes |
| Duct Size |
150mm |
| Electrical Connection |
10A Plug & Lead |
| Voltage |
220–240V |
| Frequency |
50/60Hz |
| Motor Power |
220W |
| Total Power |
224W |
| Net Weight |
14.9kg |
| Gross Weight |
18.5kg |
Technika's official specification sheet confirms the 760m³/h extraction rate, 3 + Turbo speeds, 220W motor and 224W total electrical load.
Installation Requirements
Installation Type: Wall Mounted
Extraction Type: Ducted
Product Dimensions: 900mm W x 1015mm H x 480mm D
Duct Diameter: 150mm
Electrical Connection: 10A Plug & Lead
Power Supply: 220–240V, 50/60Hz
Total Power: 224W
Technika recommends rangehood clearances of approximately 650–750mm between the cooking surface and underside of the rangehood, subject to the cooking appliance and applicable installation requirements. Installation must be completed in accordance with the manufacturer's instructions and relevant Australian standards.
Warranty
Enjoy complete peace of mind with a 1 Year Manufacturer's Warranty.
